125x85x55mm IP65 Sealed ABS Flange Mount Enclosure

This sealed ABS flange mount enclosure is manufactured by Ritec and measures 125L x 85W x 55Hmm. Its includes mounting flanges for surface mounting. Supplied with neoprene lid sealing gasket. With the seal installed, these enclosures meet IP65 dust and hose proof standard. Supplied with a solid light grey lid. PCB mounting points are moulded into the enclosure base. These sturdy enclosures have 3mm thick walls and are rated to UL 94-HB (-30° to 80°C). Not UV stabilised.

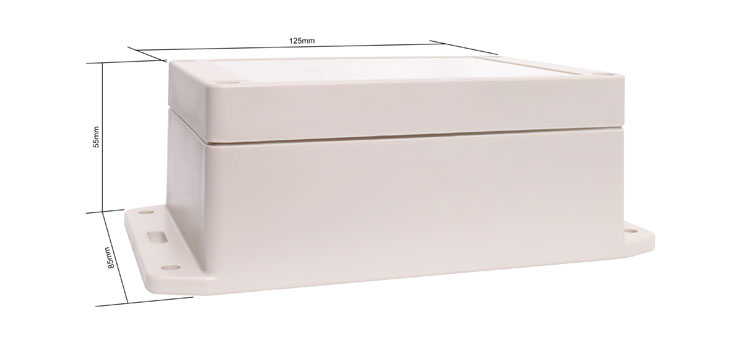

External Dimensions: 125L x 85W x 55H mm.

Features

• Meets IP65 Dust and Hose-proof standards
• Brass screw thread inserts
• Neoprene gasket seal

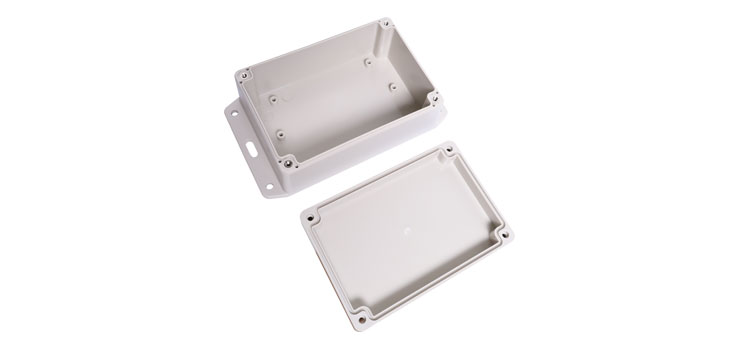

• Moulded PCB mounting points
• Manufactured from high impact ABS
• Useable temperature range of -40°C to +80°C
