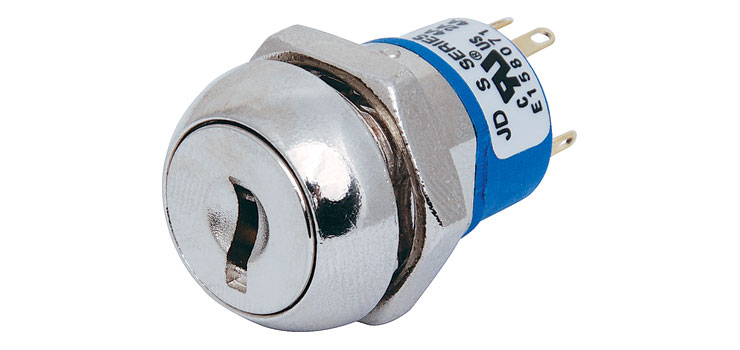

2 Position DPDT 606 Key Keyswitch

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.

Note: Key removable in one position only.

Supplied with two keys

Connection Details
Pole 1 makes to:
Pos. 1 – 8, 1
Pos. 2 – 1, 3
Pole 2 makes to:
Pos. 1 – 4, 5
Pos. 2 – 5, 7

Dimensions

Pin Configuration
