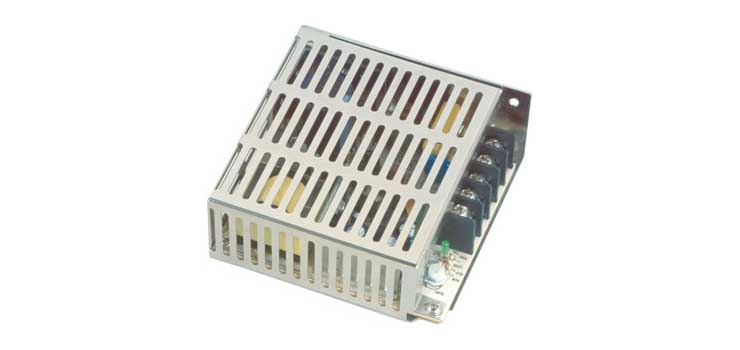

25W 12VDC Switchmode Power Supply

Switchmode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced. Though the power supplies are supplied in a vented steel cabinet they must be installed within a secondary earthed cabinet as the 240V input terminals are exposed.

Features

• Screw terminals for inputs and outputs
• Wide operating input voltage 90 ‚Ä?264VAC, 47 ‚Ä?63Hz
• Excellent output regulation from no load to full load
• High efficiency
• Overload and short circuit protection
• Inbuilt EMI filter to reduce noise radiation
• EMC approved

Input
Input range: 90-264V AC
Frequency: 47-63Hz
In rush current: 25A typical cold start
Efficiency: 65-80% at full load
Line regulation: ±0.5%

Output
Max power: 25W
Output current: 2.08A
Ripple/noise: ±1% max

Dimensions: 99W x 97D x 35H
