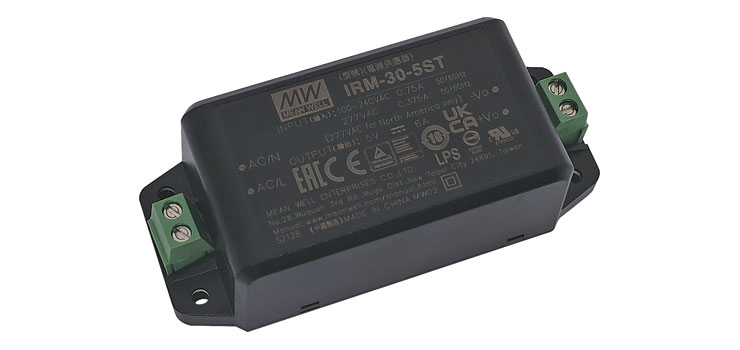

30W 5V/6A Mini Screw Terminal Power Supply

The Mean Well IRM-30-5ST 30W miniature AC-DC power supply features screw terminals for simple connection to electronic instruments or industrial automation equipment. It has a universal input range from 85-305V AC and output at 5VDC (at 6A max current). The 94V-0 flame retardant plastic case and fully potted silicone enhance the heat dissipation. Meets anti-vibration demand up to 5G and provides resistance to dust and moisture. With the high efficiency up to 90% and the extremely low no-load power consumption below 0.1W, IRM-30 series fulfils the worldwide regulation for the low power consumption requirement of electronics. The entire series is a Class II design (no FG pin), incorporating the built-in EMI filtering components and enabling compliance with BS EN/EN55032 Class B; the supreme EMC features keep the end electronics units from electromagnetic interference.

Features

• Small, compact size with simple screw terminal connection
• Wide operating temperature range
• EMI Class B without additional components
• Short circuit, overload & over voltage protections
• Cooling by free air convection
