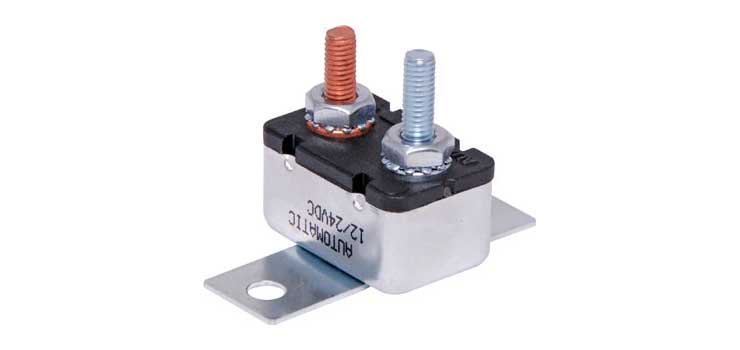

50A 12V Stud Type Surface Mount Circuit Breaker

Single pole stud type 50A DC circuit breaker with surface mounting tabs. Ideal for use in vehicles. Auto reset. Current ratings at 12V/24V DC. Meets SAE J553 standard (Type 1). #10 – 32 UNF stud connection (Approx 4.75mm diameter). Includes hardware.

Dimension Drawing:

Trip Time vs % of Rated Current
