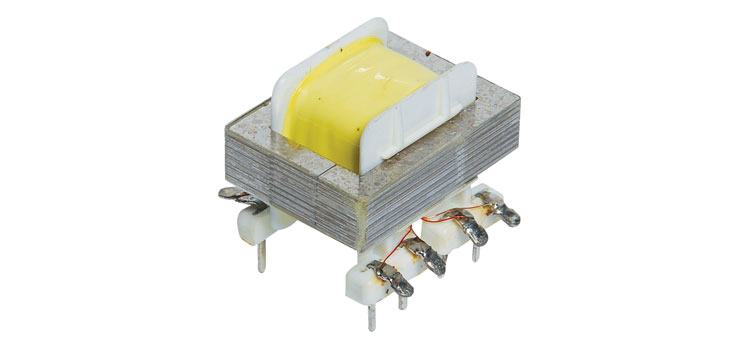

600 Ohm / 600 Ohm Mini Telephone Isolation Transformer

Name: 600 Ohm / 600 Ohm Mini Telephone Isolation Transformer - Altronics
SKU: d3QiUkk7Db
Price: 4.88 USD
Availability: InStock

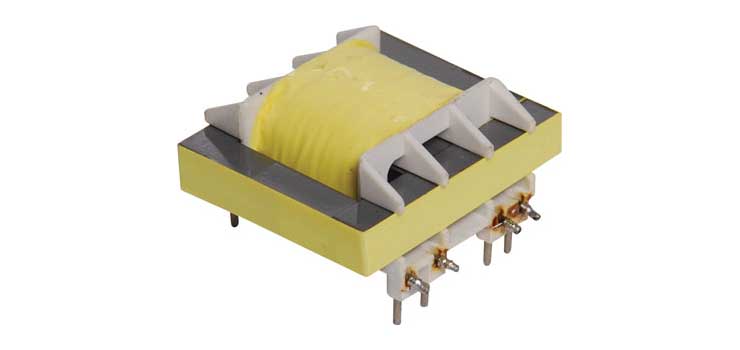

600 Ohm / 600 Ohm Low Prof Telephone Isolation Transformer

~~$13.95~~ Original price was: $13.95.$4.18Current price is: $4.18.

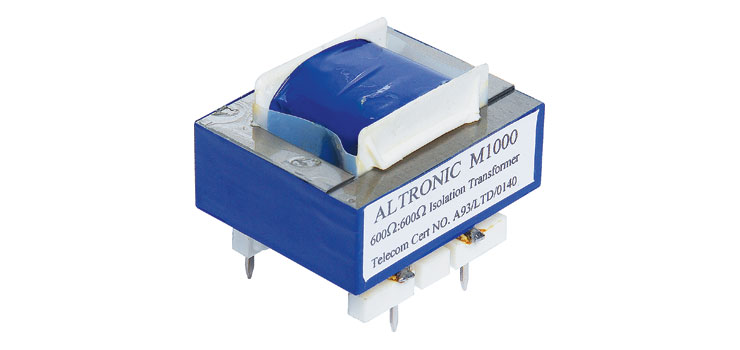

600 Ohm / 600 Ohm Telephone Isolation Transformer

~~$13.95~~ Original price was: $13.95.$4.18Current price is: $4.18.

Original price was: $16.25.Current price is: $4.88.

Only 1000 item(s) left in stock.

600 Ohm / 600 Ohm Mini Telephone Isolation Transformer quantity

... people are viewing this right now

Guaranteed Safe Checkout

Description

Impedance: 600 Ohm line, 600 Ohm or 150 Ohm equip.
Turns Ratio: 1:1
Max Level: +20dBm @ 200Hz
Insertion Loss: 1dB max @ 0dBm
Frequency Response: 200Hz – 3KHz
Return Loss: >15dB, 200Hz – 3kHz
Max Unbalanced DC: 5mA
Proof Test: 3.5kV RMS
Dimension: 26L x 21H x 19W
Weight: 25 gms
PCB hole size: 1.3mm

M1005Diag1
