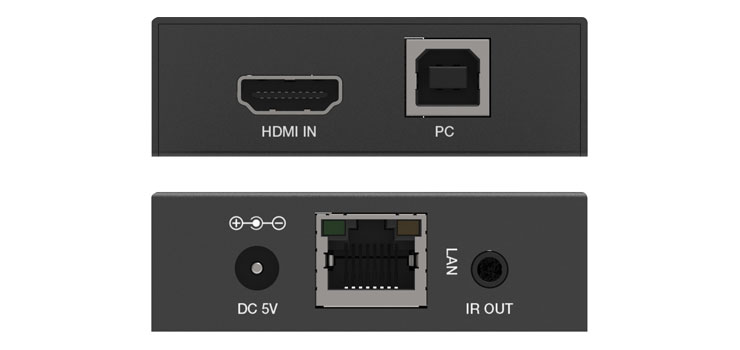

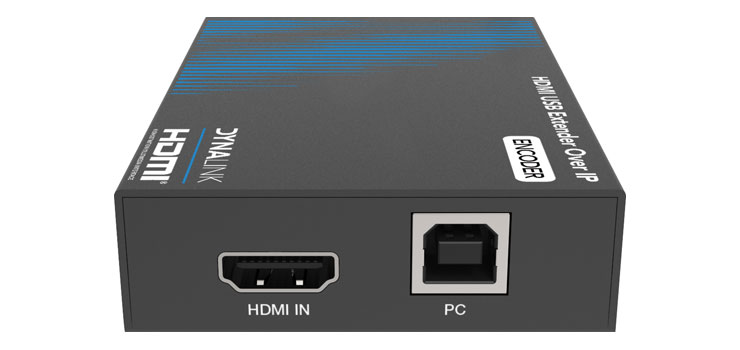

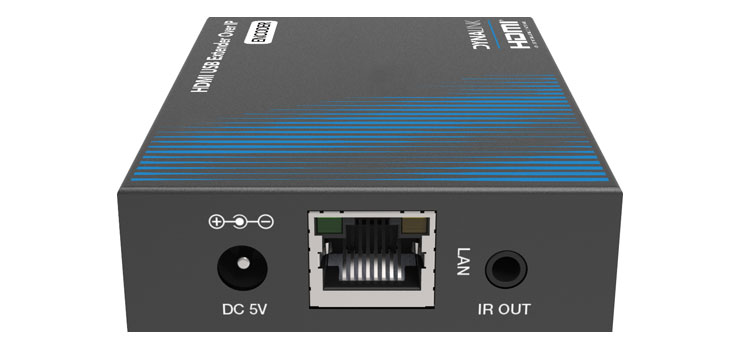

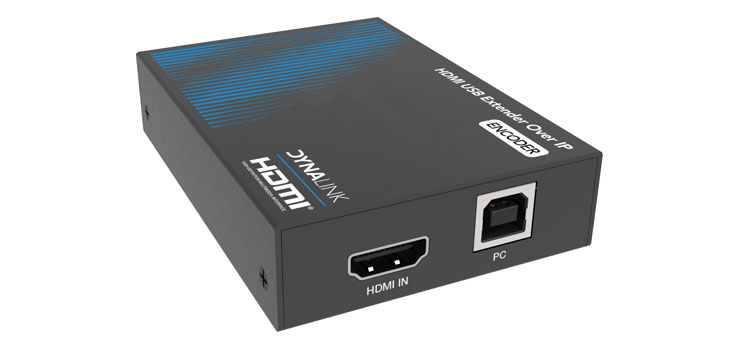

HDMI USB KVM Over IP Extender  – Encoder

Designed to extend HDMI signals over distances up to 150m using Cat6/6a cabling. In addition it also allows USB peripherals to control a connected computer from the receiver end. Infra-red control is relayed via the included IR emitter and target. The cable bandwidth allows for zero-delay operation with HDMI resolutions up to 1080p @ 60Hz. Power is via the included power supply.

Designed to be used with single or multiple A3111 HDMI Over IP Decoders – see accessories listed below. Only a single encoder can be used on a network.

Box Contents:
1√ó HDMI over IP Extender (Encoder)
1√ó IR Blaster cable (1.5ms)
1√ó 20-60KHz IR Receiver cable (1.5m)
1× 5V/1A Power Supply
1√ó User Manual

Features

• Extend both HDMI signal plus IR control & USB peripherals
• Transmission up to 150m over Cat6/6a UTP cabling
• Ideal for remote operation of PC equipment
• HDCP 1.4 compliant
• 6.75Gbps video bandwidth
• H.265 encoding/decoding
• Supports USB 1.1 KVM pass-through
• Supports standard 1000MBps network switch/router

Connection Diagrams
