Mega Box Mark II for Arduino

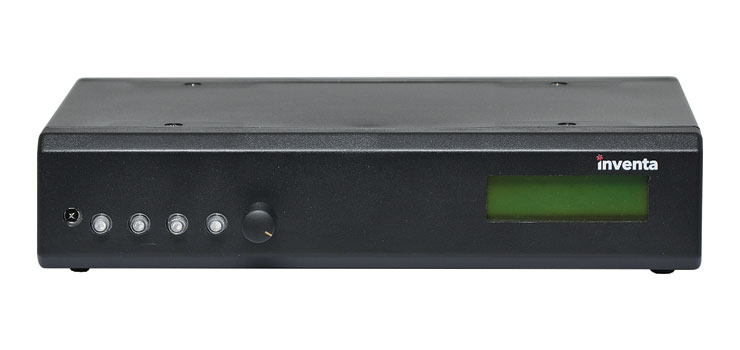

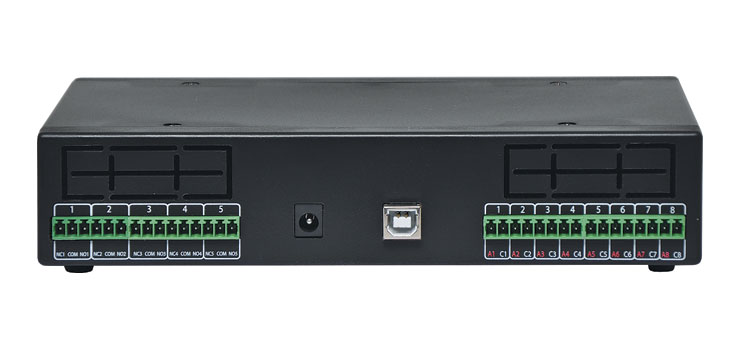

Developed in house by Altronics, this new revised MegaBox is an upgrade of our original K 9670. This revised version accepts an Arduino UNO or Mega to be plugged into it, along with two shields, allowing you to design and build your own products. Includes a 16×2 LCD, four control buttons and a rotary encoder on the front panel plus five 2A 5V relay outputs and 8 opto isolated inputs that are available on the rear. All UNO/Mega pins are broken out to header sockets for easy connection to other breakouts. A small 160 hole prototyping area on the main board is included for connecting to other sensors, parts and circuits.

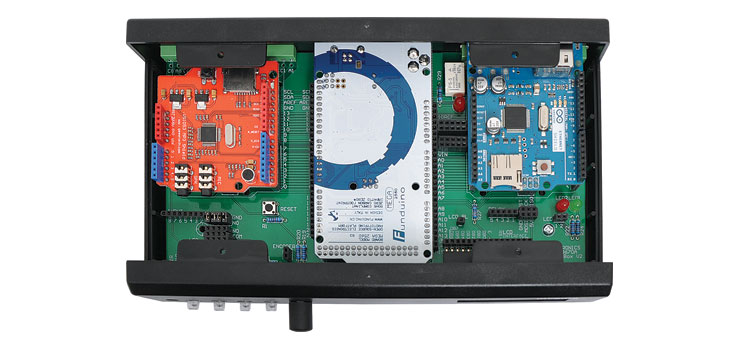

*Shields for illustration purposes only. Not included.

Features

• Utilises a half rack 1RU size case
• 16×2 alphanumeric display
• Rotary encoder control
• 4 push buttons
• Compatible with Arduino UNO/mega boards
• 5 2A 5V relay outputs
• 8 opto isolated inputs
• On board reset and LEDs
• All main board pins broken out to header sockets

Shield compatability:
Note that the maximum height above the shield PCB is 14mm. Shield placement is with the flat side to the rear of the unit.

Why buy an Altronics Kit?
Altronics kits are premium do-it-yourself projects designed to be assembled with ease. However, basic electronics knowledge and soldering skills are essential to construct our kits. A difficulty rating is provided to help determine if your ability is sufficient to build the kit project. Please note, once assembly has been commenced we are unable to honor any warranty claims. Please see the full details here.
