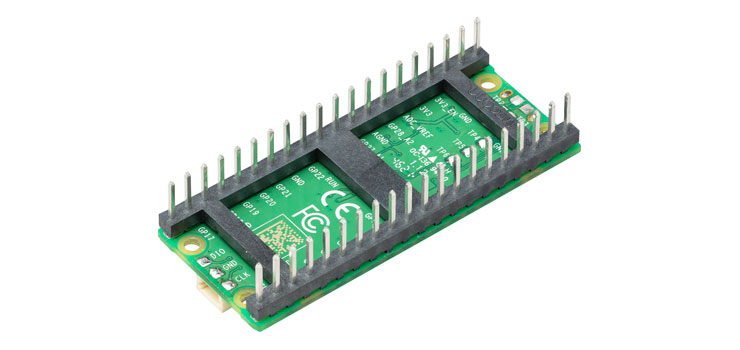

Raspberry Pi Pico H Board With Headers

The Raspberry Pi Pico is now available with headers, ready to be used in solderless breadboards for rapid prototyping.

Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand new microcontroller chip designed by Raspberry Pi in the UK. From controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands. Programmable in C and MicroPython, Pico is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file.

More experienced users can take advantage of Raspberry Pi Pico’s rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support.

The Pico features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. It features a 2MB on-board QSPI Flash. A wide range of flexible I/O options includes I2C, SPI, and ‚Ä?uniquely ‚Ä?Programmable I/O (PIO). These support endless possible applications for this small and affordable package.

Whether you prefer MicroPython or C++, here are some handy links to get you started with your Raspberry Pi Pico:

Raspberry Pi overview page
MicroPython SDK / Guide
C/C++ SDK / Guide
Raspberry Pi Pico Datasheet

Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core ARM Cortex M0 processor, flexible clock running up to 133 MHz
• 264kB of SRAM, and 2MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards
• USB 1.1 Host and Device support
• Low-power sleep and dormant modes
• Drag & drop programming using mass storage over USB
• 26 multi-function GPIO pins
• 2√óSPI, 2√óI2C, 2√óUART, 3√ó12-bit ADC, 16√ócontrollable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating point libraries on-chip
• 8√óProgrammable IO (PIO) state machines for custom peripheral support
