VGA Wallplate – Screw Connections

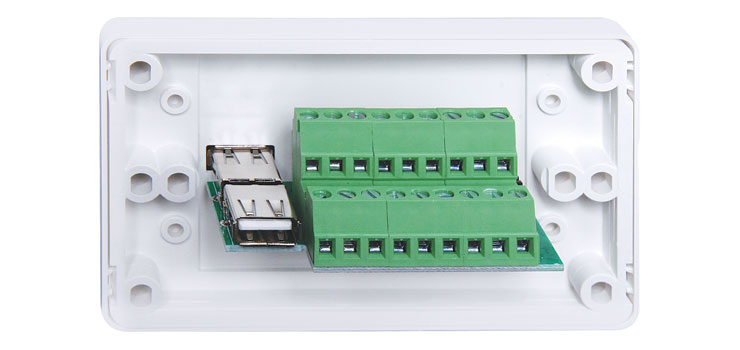

Wall plate fitted with VGA, 3.5mm audio & USB connector. Rear connections for VGA and 3.5mm audio are via screw terminals. Altronics dual cover type wallplate.

Pinouts:
Lower row: pins 1-9
Upper row: pins 10-15, pin 16 Common, pin 17-18 L-R audio.

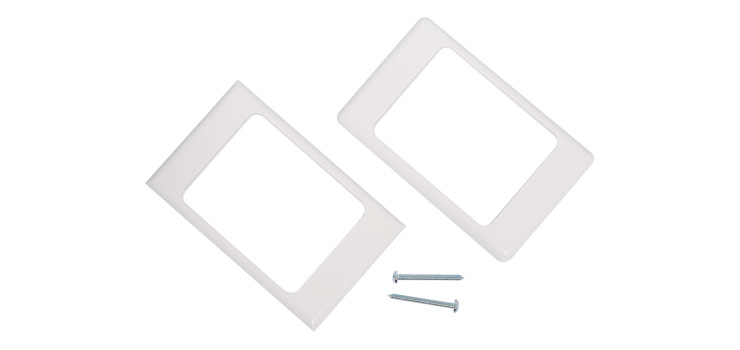

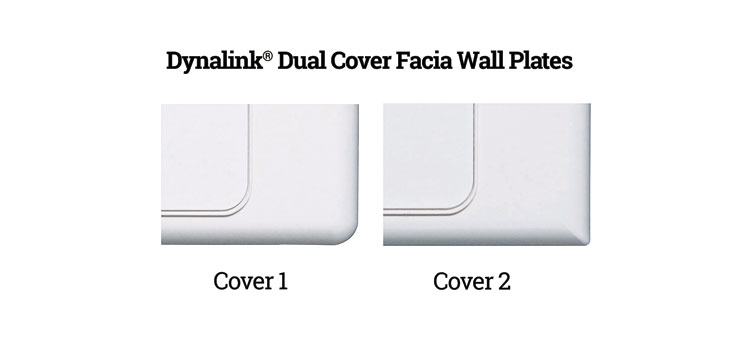

All wall plates assembled by Altronics are supplied with two facia clip on covers. These are designed to match your current decor. Simply clip on the desired cover after installation.

Designed & manufactured in Australia.
The Dynalink AV wallplate is a custom made design produced by a local plastics manufacturer. The design is unique in that it allows different facia plates to be fitted to match existing decor. Plates are CNC routed in house and assembled by Altronics staff in Perth. Read more about our Australian Made products
